Silicon Carbide Setter

  • [Introduction]: Silicon carbide setter offers excellent resistance to hot-bending, allowing setters to be made thinner and lighter. It has higher strength and there are no deformations even in very high temperature. The setters are used with separate ‘support’ so that they can be stacked several layers high. SiC setters are often used for porcelain manufacture.
  • [Size]:
    165*285*6mm
    170*288*6mm
    195*350*8mm
    220*390*10mm
    230*405*10mm
    230*410*11mm
    249*445*10mm
    300*460*15mm
Parameters
Advantages
Product Application
Our Packing
Related Products
Click here
  • Technical Parameters
ItemUnitData
RBSiC(SiSiC)NBSiCSSiCRSiCOSiC
SiC content%857599≥99≥90
Free silicon content%150000
Max service temperature℃13801450165016201400
Densityg/cm33.022.75-2.853.08-3.162.65-2.752.75-2.85
Open porosity%013-15015-187-8
Bending strength  20℃Mpa250160380100/
Bending strength 1200℃Mpa280180400120/
Modulus of elasticity  20℃Gpa330580420240/
Modulus of elasticity 1200℃Gpa300//200/
Thermal conductivity   1200℃W/m.k4519.6100-12036.6/
Coefficient of thermal expansionK-1×10-64.54.74.14.69/
HVkg/mm22115/2800//
  • Advantages
  • We can provide customers with energy-saving design schemes. The shape and size of the SiC setter is determined by the customer's product, we can design smaller contact area and thinner SiC setter, fast heating, energy saving, and more products installed, and achieve the overall cost reduction of 10-15%.
  • We have high-purity silicon carbide raw materials, which makes the SiC setter more durable. At present, the longest service life is from the Australian customer has been used for 6 years, and there is no problem.
  • Fast delivery time. We have two kinds of technology to produce SiC setter, which greatly improves our production efficiency, usually the delivery time is about 30 days.
  • Product Application

SiC setters are often used for household ceramics manufacture.

  • Our Packing​

The two packing methods we use are plywood box packing and solid wood packing, with the solid wood box requires a fumigation certificate. Depending on the various products, we will tailor the proper packaging box; Plastic foam measuring 2 cm to 3 cm thick is placed within the box and secured with row nails. To maintain the products safety during shipment, packing tape is typically used.
  • Related Products
Carbide Slab
Roller

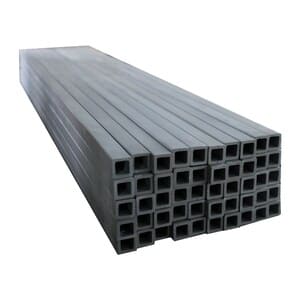

Beam
Burner Nozzle
OSiC-Plate-p2
SiC Batt
Kiln Car Structure
