Silicon Carbide Radiant Tube

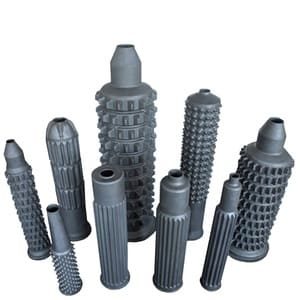

- [Introduction]: The reaction sintered silicon carbide radiant tube has high-temperature resistance, corrosion resistance, oxidation resistance and long service life, which can replace imported products. A complete set of heat exchangers includes five parts: flame tube, inner tube, radiant tube, connector, and outer tube. At present, we can also formulate a more suitable size assembly plan according to the customer’s specific kiln shape, using temperature and other different use conditions to achieve the most ideal energy-saving effect.
- [Size]:
Φ105XΦ77XΦ25X610mm
Φ161XΦ103XΦ32X670mm
Φ290XΦ229XΦ132X550mm
Dimensions can be customized
- Technical Parameters
| Item | Unit | Data | ||||
| RBSiC(SiSiC) | NBSiC | SSiC | RSiC | OSiC | ||
| SiC content | % | 85 | 75 | 99 | ≥99 | ≥90 |
| Free silicon content | % | 15 | 0 | 0 | 0 | 0 |
| Max service temperature | ℃ | 1380 | 1450 | 1650 | 1620 | 1400 |
| Density | g/cm3 | 3.02 | 2.75-2.85 | 3.08-3.16 | 2.65-2.75 | 2.75-2.85 |
| Open porosity | % | 0 | 13-15 | 0 | 15-18 | 7-8 |
| Bending strength 20℃ | Mpa | 250 | 160 | 380 | 100 | / |
| Bending strength 1200℃ | Mpa | 280 | 180 | 400 | 120 | / |
| Modulus of elasticity 20℃ | Gpa | 330 | 580 | 420 | 240 | / |
| Modulus of elasticity 1200℃ | Gpa | 300 | / | / | 200 | / |
| Thermal conductivity 1200℃ | W/m.k | 45 | 19.6 | 100-120 | 36.6 | / |
| Coefficient of thermal expansion | K-1×10-6 | 4.5 | 4.7 | 4.1 | 4.69 | / |
| HV | kg/mm2 | 2115 | / | 2800 | / | / |
- Advantages
- We can provide a variety of installation solutions for silicon carbide radiant tubes according to the customer's use environment.
- Under extremely cold and extremely hot conditions, the product performance is stable.
- The use of silicon carbide radiant tubes can save energy.
- Compared with metal materials, silicon carbide radiant tubes have higher thermal conductivity and better thermal stability.
- Product Application
Silicon carbide radiant tube is widely used in tunnel kilns, shuttle kilns, roller kilns and other gas and oil-fired industrial furnaces. It can also be used in the push-fire treatment production line of industrial kilns in iron and steel, metallurgy and other industries.
- Our Packing
The two packing methods we use are plywood box packing and solid wood packing, with the solid wood box requires a fumigation certificate. Depending on the various products, we will tailor the proper packaging box; Plastic foam measuring 2 cm to 3 cm thick is placed within the box and secured with row nails. To maintain the products safety during shipment, packing tape is typically used.
