Silicon Carbide Armor

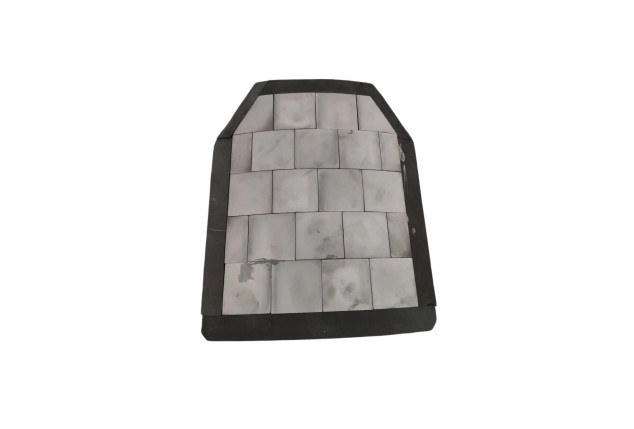

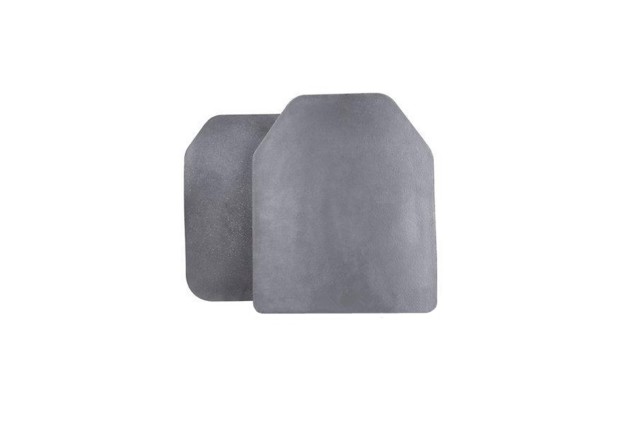

- [Introduction]: Silicon carbide armor is known for being highly resistant to bullets relative to other ceramics such as alumina. Its strength combined with a light weight ensures that it is a highly suitable material in situations where light weight and resistance are vital. The material is able to withstand extremely fast projectiles, especially those at NIJ Level III and above.
Besides personal protection systems, silicon carbide armor can be employed in structural protection applications for military equipment like ground and air vehicles. It is very flexible in terms of its manufacturing and design capabilities because it can be produced in different forms and sizes in order to offer effective protection under varying circumstances.
- [Size]:
100x100x20mm
220x270x5.2mm
240x290x9mm
250x300x10mm
250x300x22mm
Dimensions can be customized
- [Capacity]: 0.24～12m3/min
- Technical Parameters
| Item | Unit | Data | ||||
| RBSiC(SiSiC) | NBSiC | SSiC | RSiC | OSiC | ||
| SiC content | % | 85 | 75 | 99 | ≥99 | ≥90 |
| Free silicon content | % | 15 | 0 | 0 | 0 | 0 |
| Max service temperature | ℃ | 1380 | 1450 | 1650 | 1620 | 1400 |
| Density | g/cm3 | 3.02 | 2.75-2.85 | 3.08-3.16 | 2.65-2.75 | 2.75-2.85 |
| Open porosity | % | 0 | 13-15 | 0 | 15-18 | 7-8 |
| Bending strength 20℃ | Mpa | 250 | 160 | 380 | 100 | / |
| Bending strength 1200℃ | Mpa | 280 | 180 | 400 | 120 | / |
| Modulus of elasticity 20℃ | Gpa | 330 | 580 | 420 | 240 | / |
| Modulus of elasticity 1200℃ | Gpa | 300 | / | / | 200 | / |
| Thermal conductivity 1200℃ | W/m.k | 45 | 19.6 | 100-120 | 36.6 | / |
| Coefficient of thermal expansion | K-1×10-6 | 4.5 | 4.7 | 4.1 | 4.69 | / |
| HV | kg/mm2 | 2115 | / | 2800 | / | / |
| Protection class | No. | Ballistic standard | Velocity m/s | Type |
| 1 | NTK1D-001 | 《Ga423-2003 Bulletproof Shield》 | 300-320 | Year 1964, 7.62mm pistol lead bullet |
| 2 | NTK2D-002 | 420-450 | Year 1951, 7.62mm pistol lead bullet | |
| 3 | NTK3D-003 | 480-515 | Year 1951, 7.62mm pistol lead bullet | |
| 4 | NTK4D-004 | 420-450 | Year 1951, type B, 7.62mm pistol lead bullet | |
| 5 | NTK5D-005 | 480-515 | Year 1951, type B, 7.62mm steel core bullet | |
| 6 | NTK6D-006 | 710-735 | Year 1956, 7.62mm steel core bullet |
- Advantages
- Our silicon carbide armor possesses a high density up to 3.13–3.15 g/cm³.
- Its hardness between 2479 and 3099 HV, providing excellent instantaneous impact resistance.
- Flexural strength can reach 396.22–512.35 MPa, ensuring strong structural reliability under stress.
- With five 3000-ton forming presses, we deliver fast production cycles and a monthly supply capacity ＞ 10,000 pieces.

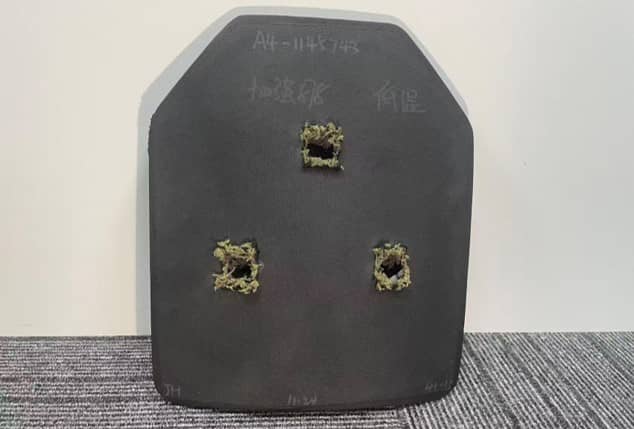

- Silicon carbide material offers outstanding multi-hit performance, maintaining protection under repeated impacts.
- Product Application
Silicon carbide armor is extensively used in protection systems in the military due to its characteristics of high hardness, low density, and good ballistic property. Because of such features, silicon carbide armor is capable of offering sufficient protection without being excessively heavy.
The versatility of silicon carbide armor makes it suitable for use in both military and civil purposes. It finds applications in many systems, such as armored cars, ships, and secure cabinets. It is also extensively used in cash transfer vans and other civil security systems requiring ballistic resistance.
- Our Packing
The two packing methods we use are plywood box packing and solid wood packing, with the solid wood box requires a fumigation certificate. Depending on the various products, we will tailor the proper packaging box; Plastic foam measuring 2 cm to 3 cm thick is placed within the box and secured with row nails. To maintain the products safety during shipment, packing tape is typically used.
